Power Cables Rubber Insulated Heavy Duty Extension Cord Rated Voltage 450/750V for Construction Sites
Product Overview

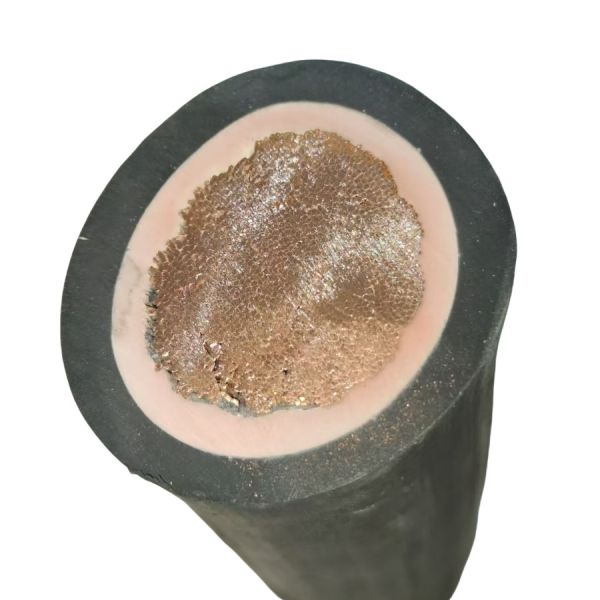

YC Power Cable - Heavy-Duty EPR Insulated Rubber Cable. 450/750V H07RN-F single copper conductor heavy duty rubber sheath power cable designed for demanding industrial applications.
This flexible rubber cable features multiple strands of annealed copper conductor with EPR rubber insulation and rubber sheath. Its superior flexibility and tensile strength make it ideal for movable electrical equipment in both indoor and outdoor environments, particularly in demanding sectors like power generation, metallurgy, and chemical industries.
Key Specifications
- Conductor: Stranded Annealed Copper Core
- Insulation: EPR (Ethylene Propylene Rubber)
- Sheath: Heavy-Duty Rubber
- Voltage Rating: 450/750V
- Temperature Range: -30°C to +70°C (90℃ max)
- Special Features: Movable, Flexible, oil resistant, small bending radius
Applications
Flexible rubber cables offer exceptional wear resistance, oil resistance, weather resistance, high temperature tolerance, mechanical damage protection, and superior flexibility. These properties make them suitable for complex and harsh working environments involving frequent movement, mechanical friction, and oil exposure.
Technical Characteristics
Temperature Ratings
- Fixed installations: -30°C to +60°C
- Fixed protected installations: +85°C
- Flexed applications: -15°C to +60°C
- Insulation tested to +90°C
Minimum Bending Radius
- Fixed installations: 4 x overall diameter
- Flexed applications: 6 x overall diameter
Product Specifications
| Product Name |
H07RN-F Rubber Cable |
| Insulation Material |
EPR |
| Jacket |
General Rubber Sheath |
| Shape |
Round wire |
| Feature |
Flame retardant, soft and tensile resistant |
Company Profile
Chongqing Kefei Cable Group Co., Ltd. has specialized in research, development, and production of rubber cables for over 40 years. As a large enterprise dedicated to cable manufacturing, we produce various electrical cables including mining cables, rubber sheath cable series, shield machine special high voltage cables, and other specialized series. Our flexible cable series benefits from more than 20 years of expertise and can be customized to meet specific customer requirements.
Our products are distributed worldwide and widely used across various sectors including coal mining, power stations, and transportation. We are recognized for our excellent quality and superior after-sales service by customers both domestically and internationally.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certifications
Packing & Delivery
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Can you produce and manufacture products according to customer requirements?
Yes, we can customize the product according to your requirements.
How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
